Grill gazebos are interesting freestanding structures with partial walls. They can be made from vinyl, aluminum, or wood, but wrought iron or even stone could work if you choose the custom route for the gazebo. Gazebos also often have shelves and grids for plates or tableware. The great thing to note about how to build a grill gazebo is they do not need a wide area. You may be hesitant to consider a grill gazebo for the yard due to limited space, but this is often not the case due to the small dimensions required for their construction.
Grill gazebo plans are also straightforward and significantly affect the grilling experience. Whether you are using a charcoal grill or a gas grill, gazebos offer protection from the harsh summer sun and sudden rainstorms as well.
Is it possible to build on uneven ground?
Many questions on how to build a grill gazebo have considered the level of the base. It is possible to construct your grill gazebo on uneven ground, provided there are adjustable legs. However, it should be a moderate slope, nothing like a rough descent. All one needs to do is shorten the legs further up the hill.
Collect materials
Constructing a grill gazebo for your outdoor space will take strong tools, know-how, and a few days of work. This is one of those projects that need some working knowledge of woodwork, so you need to be up to the task.
As for material sourcing, it can be attained from any hardware store. Alternatively, you can purchase a kit where everything is combined into one DIY gazebo package.
For example, when getting wood, look for pressure-treated lumber such as pine or cedar, which is resistant to rot. The majority of DIY gazebos go the route of durable metal roofs.
Work from the ground upwards
Identify the best flooring for your needs. The grass or dirt is sufficient, of course, but you may have to deal with messy shoes while grilling.
Gravel is another option to consider, or you can build over an existing site like the patio. A simple frame is also possible, connecting each of the corners with boards. Proceed by attaching flat cross supports, and set cedar fence planks to make a wooden floor.

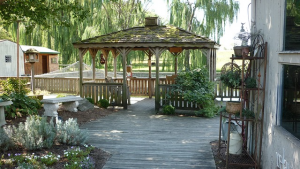

Plant the posts
Select pressure-treated timber for the posts or add treatments to the four-by-four portion, which is underground. That will ensure they do not decompose. The grill gazebo posts can either be planted in existing concrete, or you can dig three-inch footings.
One of the options to consider for the grill gazebo plans is pouring a slab of concrete. By utilizing a batter board and string, lay the dimensions of the grill gazebo and the favored location for each post. You may also use the three-four-five rule to make sharp corners and excellent diagonals [1].

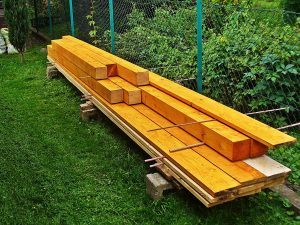

Build the rafters
The grill gazebo plans need a basic roof, and the process ought to be the same as it would be the case for a house on a small scale. Begin by calculating the angles or the pitch.
There should be cross support and different board lengths that are mounted. Do the same for the other side and connect the roofing sides at the top. Cut and attach plywood to each side of the roof.
Build trusses
The goal of the trusses is to support the plywood which holds up the roofing. That depends on the material you have chosen.
They should be equally spaced and fastened to the roof with rafter ties. One approach to this is to fasten the top to bottom chords with six-inch screws and cut webbing boards at a 20-degree angle, making them long.
Have the webbing boards on the middle of the bottom chords and mark where they ought to be by lining them on the top chord. The purpose is to fasten these trusses onto the lumber.
Dressing it
You could add cedar to the outer edges of the roofline and beneath the roofing for additional thickness. That is, the roofing nails are not visible on the under part of the roof. It also makes for a finished appearance on the inside of the grill gazebo.
Adding the roof materials to custom built gazebo
Get the roofing underlayment material and install it in strips using the roofing nails. The seams should also be overlapped slightly to protect from water-based leaks.

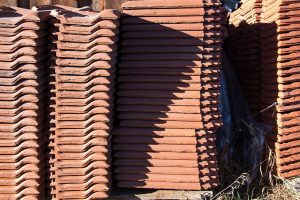

Apply the shingles thereafter to the top of the roof. These have to be installed one row at a time using the nails.
Overlap the row which is below as you continue to set it up. Alternatively, you could go for metal roofing which does not need as much work.
Trim the bottom of the posts
The bases of the posts are there to prevent trim boards from fitting against the posts. Before cutting the trim boards, run the full-length cedar posts through a table saw several times until a quarter of an inch of material is removed.
Then attach the boards to the posts with a trim gun utilizing 2-inch galvanized nails. The joint should be strengthened with construction adhesive before it is nailed together. Brad nails should also secure them at the top of the boards.
Personalization of the outdoor kitchen
When the roof is on, the grill gazebo is almost finished. Some people like to add additional attributes to the structure as a way of customization.
For example, a lattice or screen would work well for privacy on multiple sides. You may also frame in a window or add a shelf at a countertop level. It allows for an eating area to set down food items or these could be passed to your guests. A fire pit may also be great for ambiance.
Nails or hooks for the cooking area like aprons may also come in handy. You may also want an additional shelf for barbecue sauce, grilling supplies, and lighter fluid.
